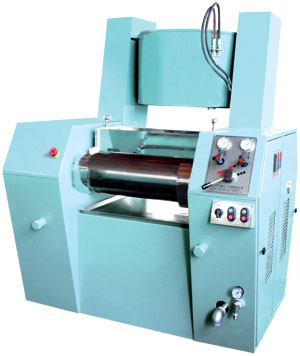

Double Hydraulic Tri-chilled Roller Mill

LSA-260-650



double hydraulic tri-chilled roller mill
double hydraulic tri-chilled roller mill

Features

  1. Double hydraulic tri-chilled roller mill machine adapts by hydraulic automatic control and 2-stage oil pump.
  2. It is easily operated.
  3. Manually and automatically dischanging and feed are safe and convenient.
  4. The roller is cast with special alloy material with high strength and the surface has high hardness and ware resistance.

Model Specification

Model
LSA-260-650
 Roller Diameter (mm)
¦µ260
 Length of working surface (mm)
650
 Surface rigidity of roller
HSD70 - 73
 Speed of Roller (rpm) - Slow roller
58
 Speed of Roller (rpm) - Medium roller
153
 Speed of Roller (rpm) - Fast roller
408
 Main Motor Power (HP)
30
 Hydraulic Motor Power (HP)
2
 Hydraulic System (Mpa)
6.3
 Machine Weight (kg)
2000

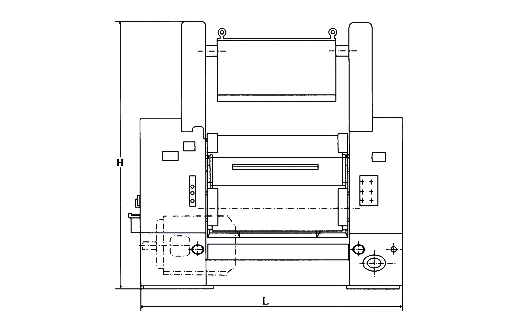

 Overall Dimension (mm)
L1600 x W1280 x H1260

*Data above provided for reference purpose only. Company reserve the right to change or modify any particular without prior notice.
