This machine includes one stainless steel standard type filter.
It is import from America.
Gas pneumatic two united parts and single gas control valve, which installs on the barrow for moving to any production line for operation.
Application
Filtering for the materials of paint, printing oil, all kinds of fope, colophony, petroleum, medical product, chemical product, cosmetic, textile product, sensitization, hot solvent, industrial water, plating liquid, milk, mineral water, fruit juice, vegetable oil and etc.

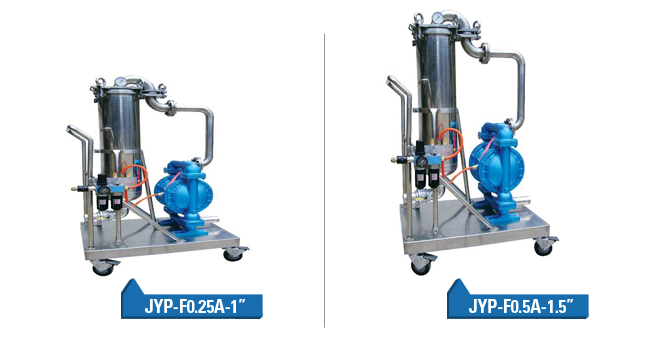

Model Specification
Model
JYP-F0.25A-1"
JYP-F0.5-1.5"
Filtering Area (m²)
0.25
0.50
Design Pressure / temperature (MPa/C°)
0.6/120
Filtering beg diameter / Length (mm)
180/450
180/810
Filtering accuracy (um)
1, 3, 5, 10, 0, 25, 50, 70, 80, 100, ....1400
Size of diaphragm pump
1"
1.5"
Maximum Flowing (M³/h)
9
22
Maximum Pressure (MPa)
0.8
*Data above provided for reference purpose only. Company reserve the right to change or modify any particular without prior notice.
