High Shear Emulsifying Machine

SB-410/3

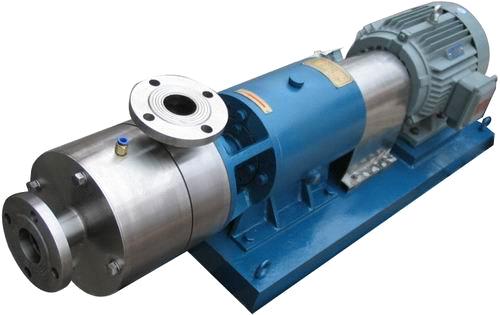

high shear emulsifying machine

Features

  1. Work principle od on line high shear emulsifying machine
  2. Whole range measurement wihtout changing the lens, convenient to use.

Model Specification

Model
SB-410/3
Power (HP)
10
Voltage / Frequency
415V/50Hz/3P
Rotation Speed (rpm)
2900
Processing Capacity (ltr/hr)
4000
Material
SS304 for part contacting with medium
Pipeline Diameter
Inlet: DN50, Outlet: DN50
Dimension (mm)
L1400 x W550 x H586

*Data above provided for reference purpose only. Company reserve the right to change or modify any particular without prior notice.
