High Speed Dissolver (Platform Type)

DMBP-2000EP-100; DMBP-2000EP-125; DMBP-2000EP-150

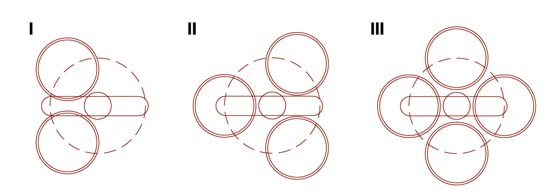

Option of Tank Arrangement

option of tank arrangement figure

Features

  1. Disperding gear shaft can be lifted and lowered with the pneumatic or hydraulic built in system.
  2. Safety cut-out switch built into the column with adjustable high to match the container height in order to ensure the mixing unit cannot match the container edge during operation.
  3. Arm lift system operation stable and flexible, it can be rotated to any angle within 360°.
  4. Dispersing gear shaft and the main parts are made of stainless steel.
  5. Designed for premium quality to guarantee a long life span and reliable everday performance.
  6. Runs stable with low noise.
  7. Variable speed control for flexible operation.
  8. Suitable for different viscosity of the mixed materials.
  9. Spreading blade can be adjusted to any materials requiremets to prevent materials from drifting outside container.
  10. Built in inverter/Frequency conversion.
  11. With option - Our selected electronic component and motors is specifically complies for hazardous location, containing any sparks within the motor or electronic component without igniting external.
  12. Lid in stainless steel cover is optional.
  13. Mixer clamp is optional.

Plateform Type

  1. It is designed for placing onto a platform so the machine can be operated in 2, 3, or 4 stationary containers to be fixed on the steel platform.
  2. We provide expertise technical team to design and built the platform plant to meet the factory and customer's requirement.

Additional Technical Specification

Various optional addtional technical specification available for selection:

  1. Fully-Explosion Proof (E)
  2. Lid (L)

Model Specification

Model
DMBP-2000-100
DMBP-2000-125
DMBP-2000-150
Main Motor
HP
100
125
150
Speed
RPM
0 - 1200
Capacity
ltr
3000 - 5000
Lifting Height
mm
2000

*Data above provided for reference purpose only. Company reserve the right to change or modify any particular without prior notice.
