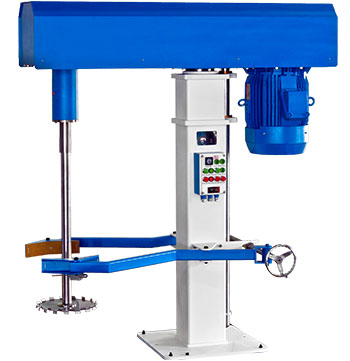

High Speed Dissolver (Standard Type)

DMB-1600ECL-50; DMB-1600ECL-60; DMB-1600ECL-75





Features

  1. Disperding gear shaft can be lifted and lowered with the pneumatic or hydraulic built in system.
  2. Safety cut-out switch built into the column with adjustable high to match the container height in order to ensure the mixing unit cannot match the container edge during operation.
  3. Dispersing gear shaft and the main parts are made of stainless steel.
  4. Designed for premium quality to guarantee a long life span and reliable everday performance.
  5. Runs stable with low noise.
  6. Variable speed control for flexible operation.
  7. Suitable for different viscosity of the mixed materials.
  8. Spreading blade can be adjusted to any materials requiremets to prevent materials from drifting outside container.
  9. Built in inverter/Frequency conversion.
  10. With option - Our selected electronic component and motors is specifically complies for hazardous location, containing any sparks within the motor or electronic component without igniting external.
  11. Lid in stainless steel cover is optional.
  12. Dissolver clamp is optional.

Standard Type

  1. It designed for dispersion and pre-mixing in mobile containers.
  2. Supplying dissolver with or without a container-fastening device according to customer's need.
  3. Supply dissolver machine ranging from 50HP to 75HP with the lifting height of 1600mm.
  4. Production capacity up to 3000 litres per batch is achievable.

Additional Technical Specification

Various optional addtional technical specification available for selection:

  1. Fully-Explosion Proof (E)
  2. Dissolver Clamp (C)
  3. Lid (L)

Model Specification

Model
DMB-1600-50
DMB-1600-60
DMB-1600-75
Main Motor
HP
50
60
75
Speed
RPM
0 - 1500
Capacity
ltr
500 - 2000
1000 - 3000
Lifting Height
mm
1600
Dimension (L/W/H)
mm
2280 x 800 x 2560

*Data above provided for reference purpose only. Company reserve the right to change or modify any particular without prior notice.
